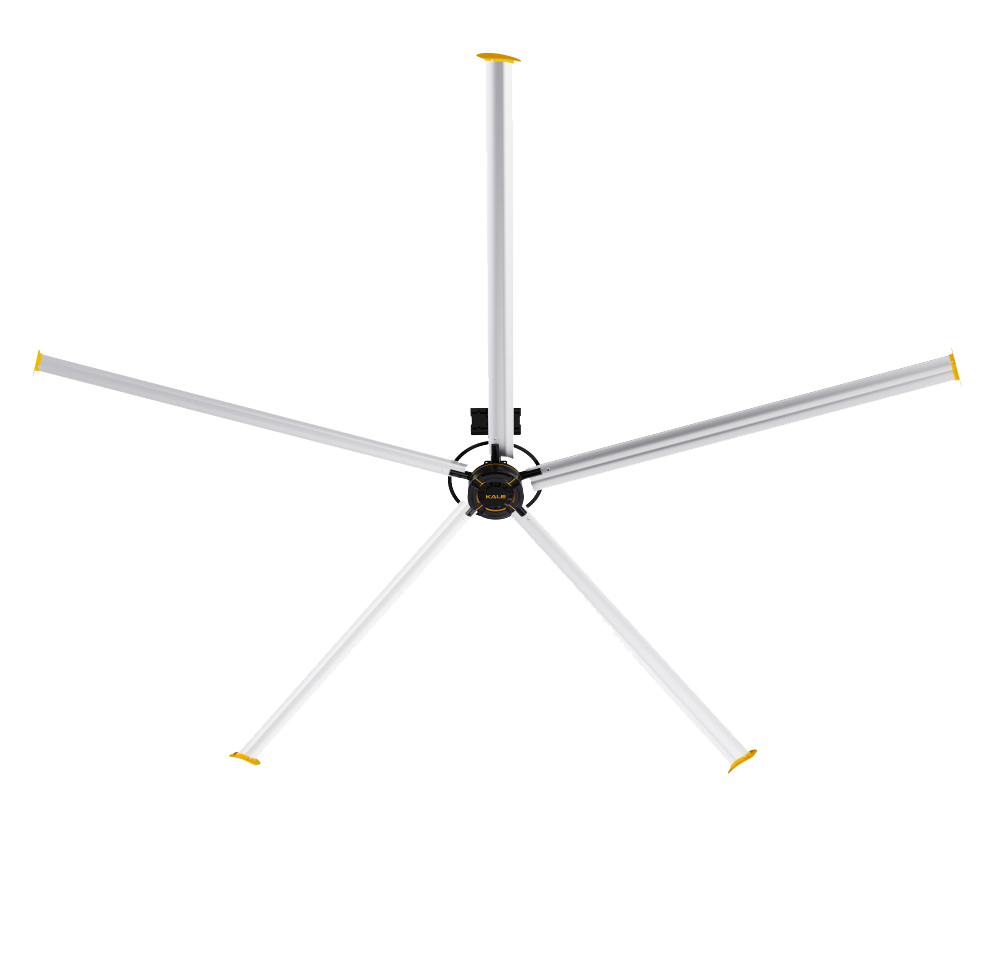

Design for high and large spaces, Zephyrus generate massive air-volume with low speed, create a consistent and comfortable environment.
ZEPHYRUS HVLS fan redefines the industry standard for industrial fans with its outstanding performance. Equipped with advanced PMSM technology, it delivers three-dimensional natural wind airflow while consuming minimal energy. The fan also features multiple safety measures to ensure secure usage.
Key Features:

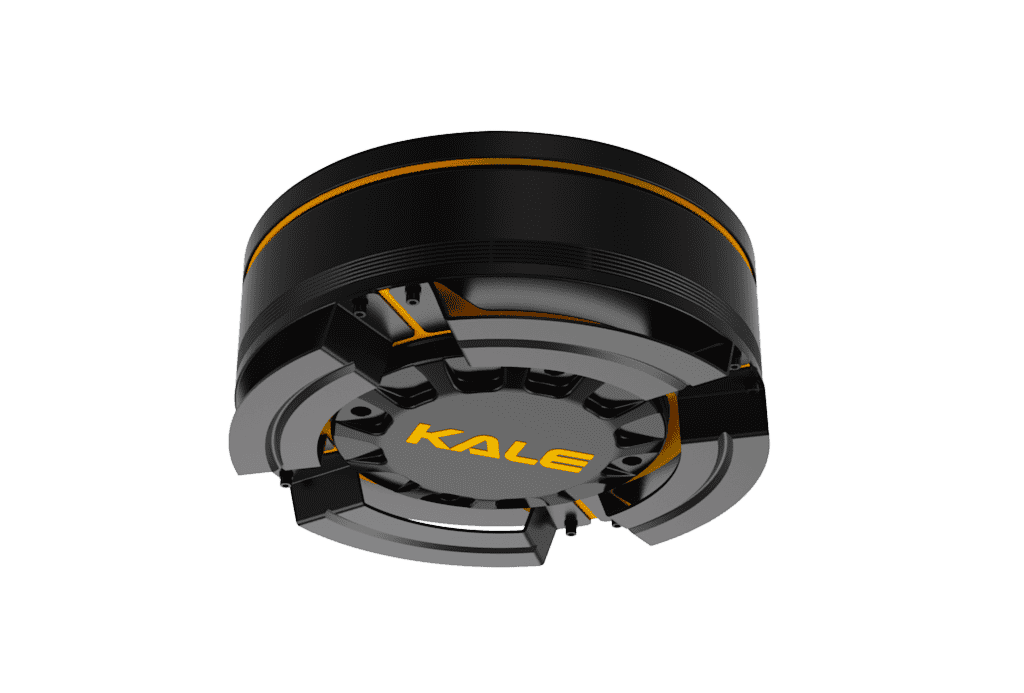

EEURUS III fan uses an industry-unique external rotor PMSM (permanent magnet synchronous motor). EURUS III fan motor's solid foundation of large air volume and coverage area is due to NdFeB rare-earth magnets,99.99% pure copper wire. With a maximum torque of 300 N·m, the EURUS III fan motor delivers a more consistent airflow. This enables it to achieve a full load air volume of 933,000 m³/h.
Remote control and monitoring of multiple devices.
RUN/STOP status and operation speed adjustment of fans can be controlled with a timing function (daily/weekly), countdown and temperature control.
Constraint is up to 30 units.
The distance between the master controller and the sub-controller should be < 2km.
Optional plan with the new fan’s controller – KALE FANS Cloud Available for iPad, PC and Phone to access the control system.

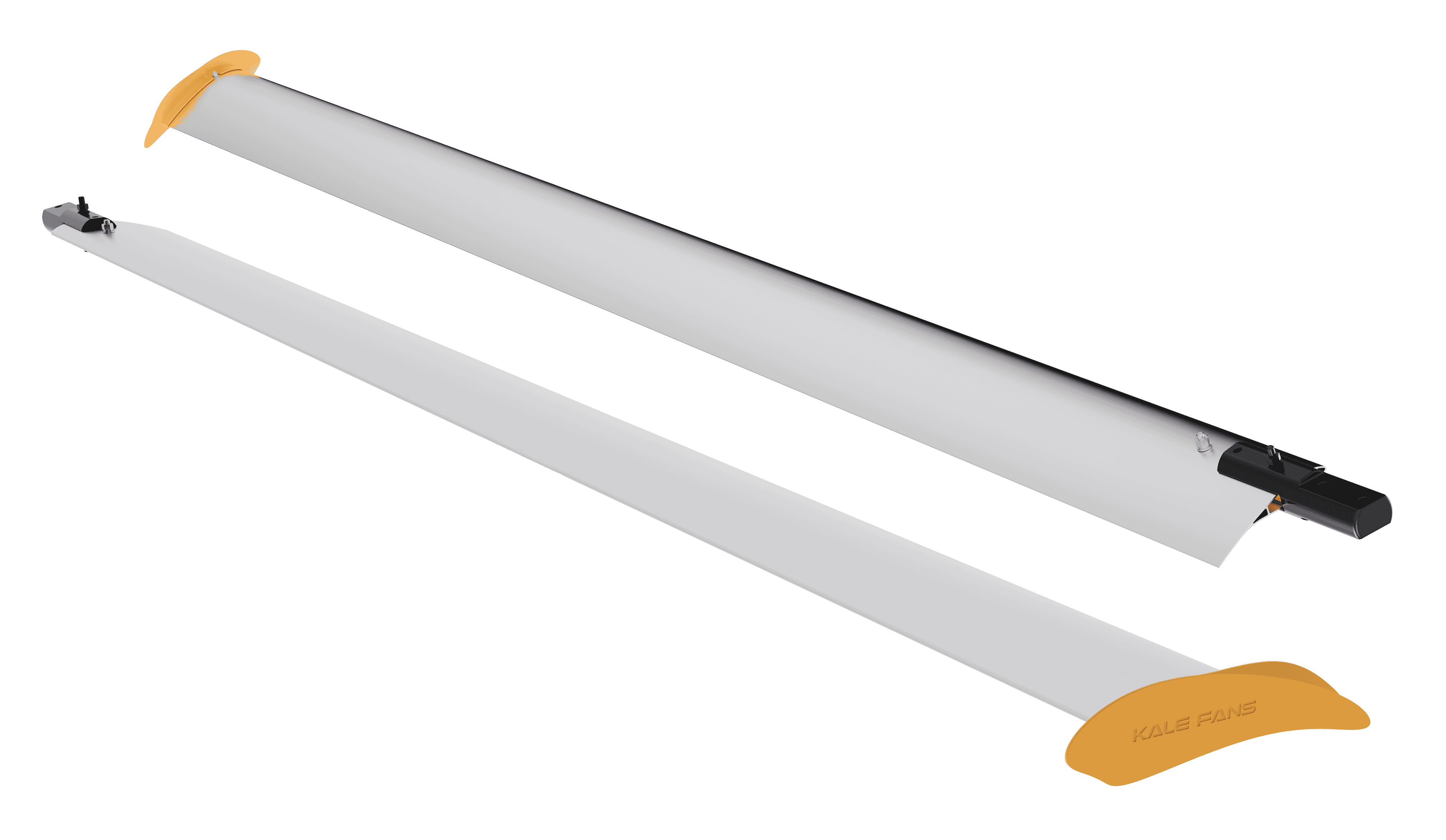

High-efficiency Fan Blade Design
KALE FANS' unique fan blade with a solid-curve ending greatly improves the air generation performance.
Winglet guarantees the safe and stable operation by reducing the fan blade vibration.
Unique Chamber Design
6 strengthen ribs with up to 4mm thickness within the blade chamber, significantly reduce the blade amplitude during fan operation and allow fans to fit into narrow spaces.
Long Service Time & Corrosion-resistant
Made of high-strength aerospace magnesium-aluminum alloy(6063-T6). The surface of the fan blade adopts an electrostatic spraying process, which is corrosion-resistant, enables its usability in harsh scenarios.
Super Strong Load-bearing

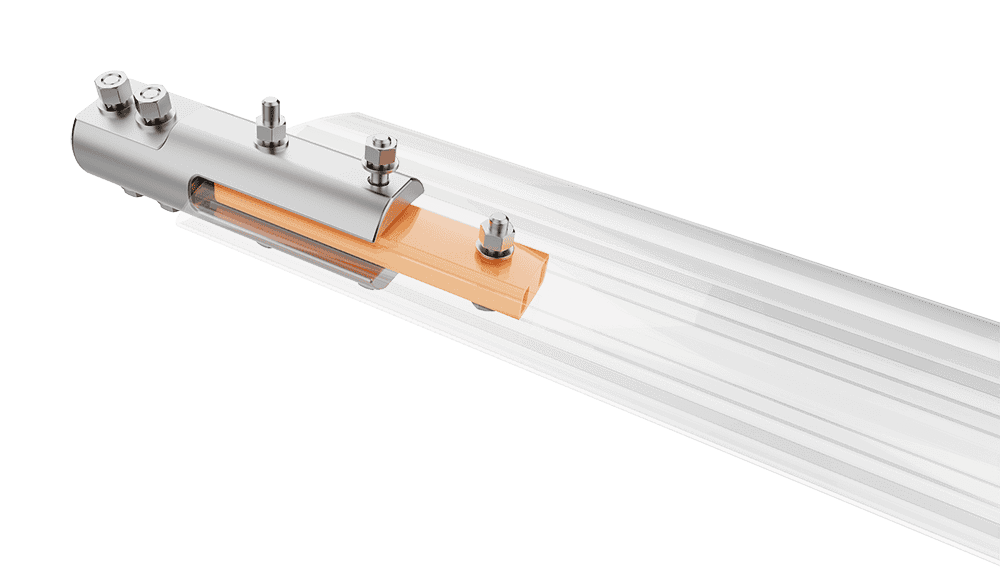

KALE FANS thickened external connector with internal safety part withstands 300KG weight.
Double Protection
The external connector is made of aviation hard aluminum 7075-T6, with a tensile strength of 595 MPa.
Safety internal connector: wear-resistant & silent.
Millions of Times Tested
KALE FANS blade system stands more than a million times of overload fatigue experiments, overcomes the problem of long-term operation metal fatigue and brings you a long-lasting and stable excellent experience.
| Model | Size | Air volume | Max speed | Fan weight | Power | Full load current | Noise level |
|---|---|---|---|---|---|---|---|
| HVLS-D3AAA73 | 24ft(7.3m) | 15000m³/min | 54RPM | 115kg | 1.3kW | 4.3Amps/220V | <40dB(A) |
| HVLS-D3AAA61 | 20ft(6.1m) | 14100m³/min | 60RPM | 111kg | 1.1kW | 2.8Amps/220V | <40dB(A) |
| HVLS-D3AAA55 | 18ft(5.5m) | 13250m³/min | 64RPM | 104kg | 0.7kW | 2.5Amps/220V | <40dB(A) |
| HVLS-D3AAA49 | 16ft(4.9m) | 12300m³/min | 78RPM | 101kg | 0.7kW | 2.2Amps/220V | <40dB(A) |

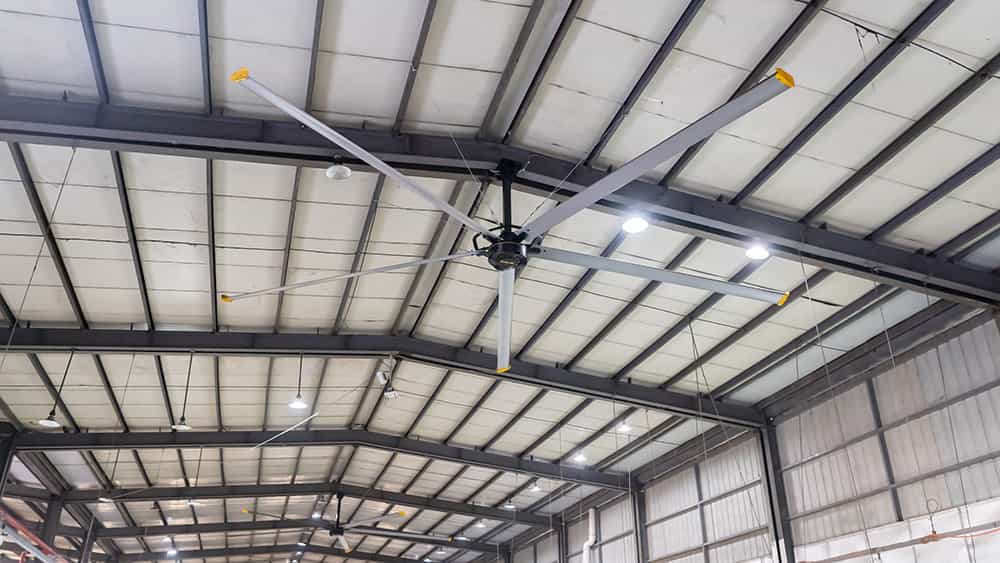

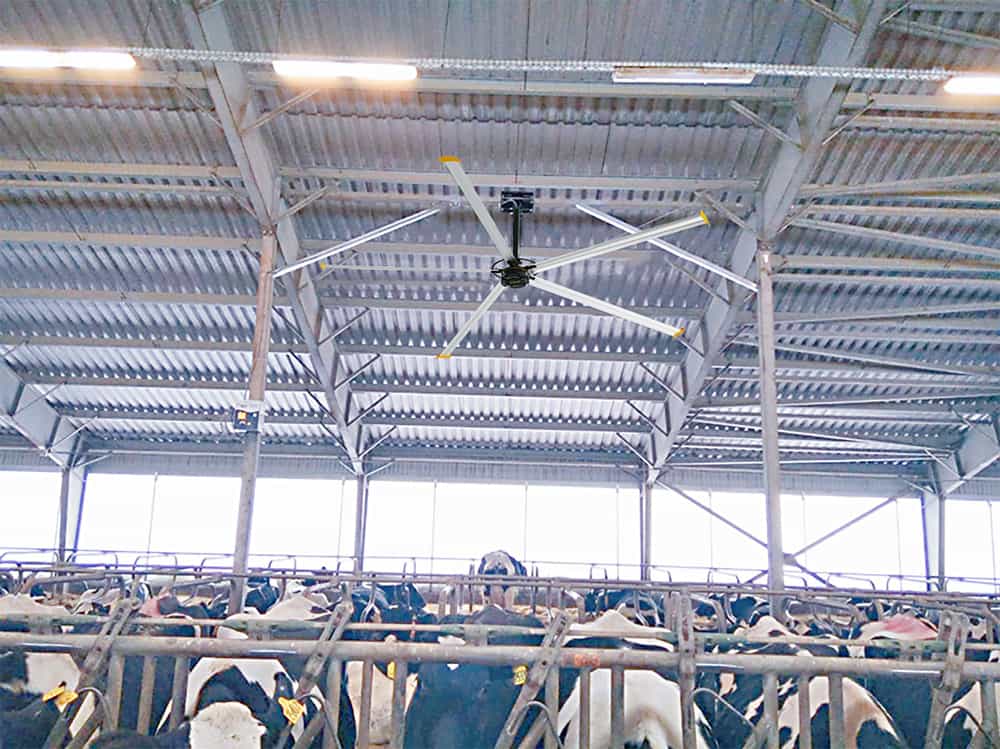

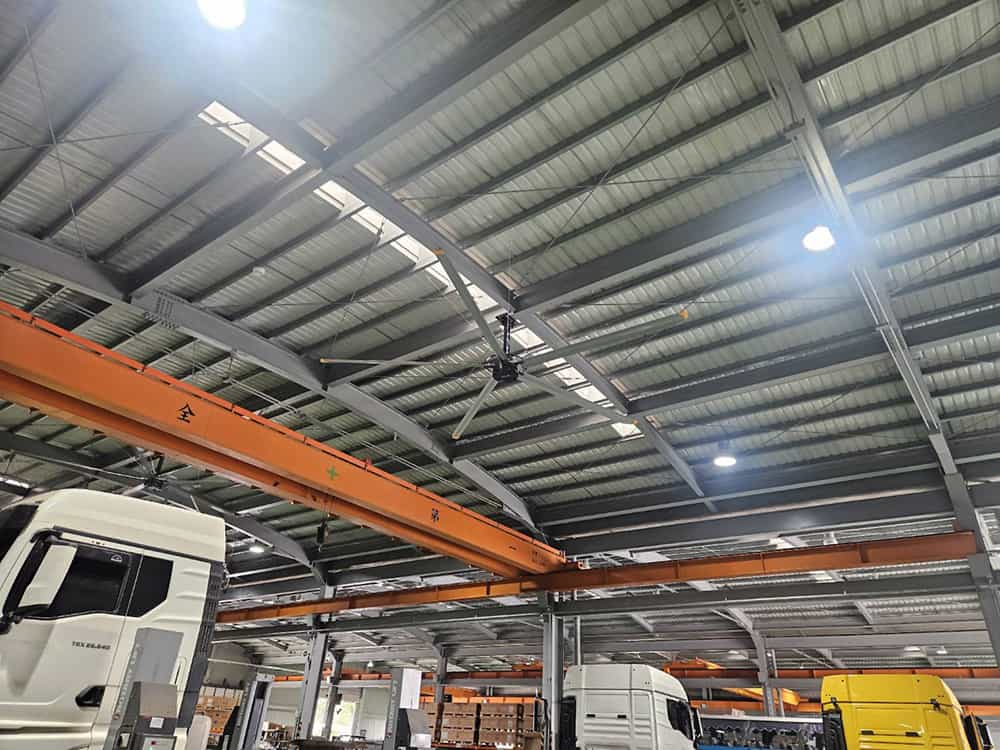

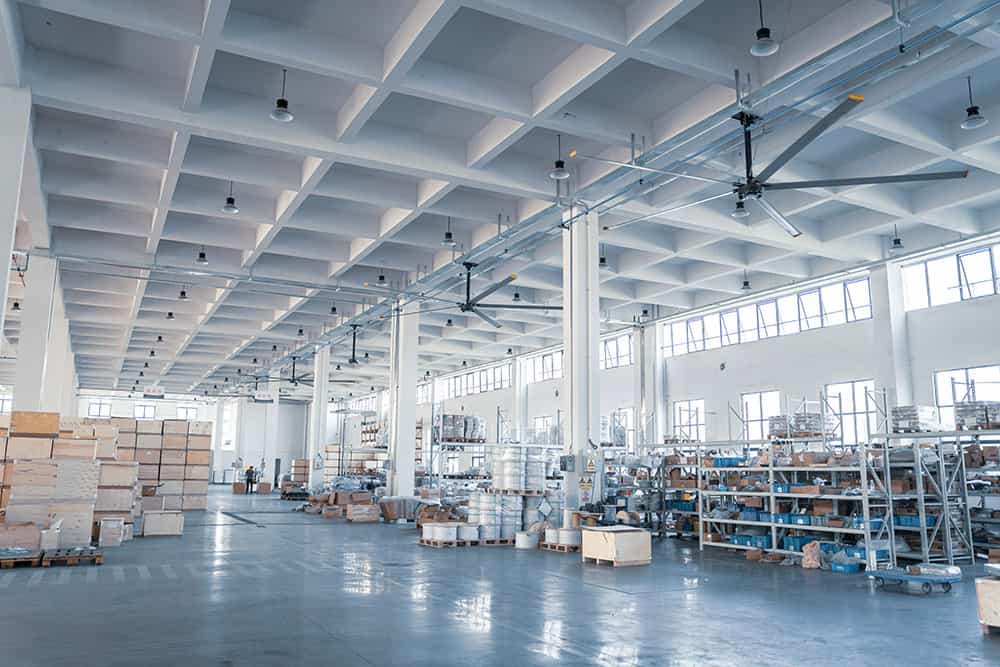

ZEPHYRUS HVLS ceiling fans enhance air circulation, improving comfort and safety in vast factories, warehouses, and automotive workshops and promoting animal health and ensuring worker well-being.
