Airfree uses a high-efficiency PMSM motor. It's suitable for various environments, such as industry, commercial, and animal husbandry.

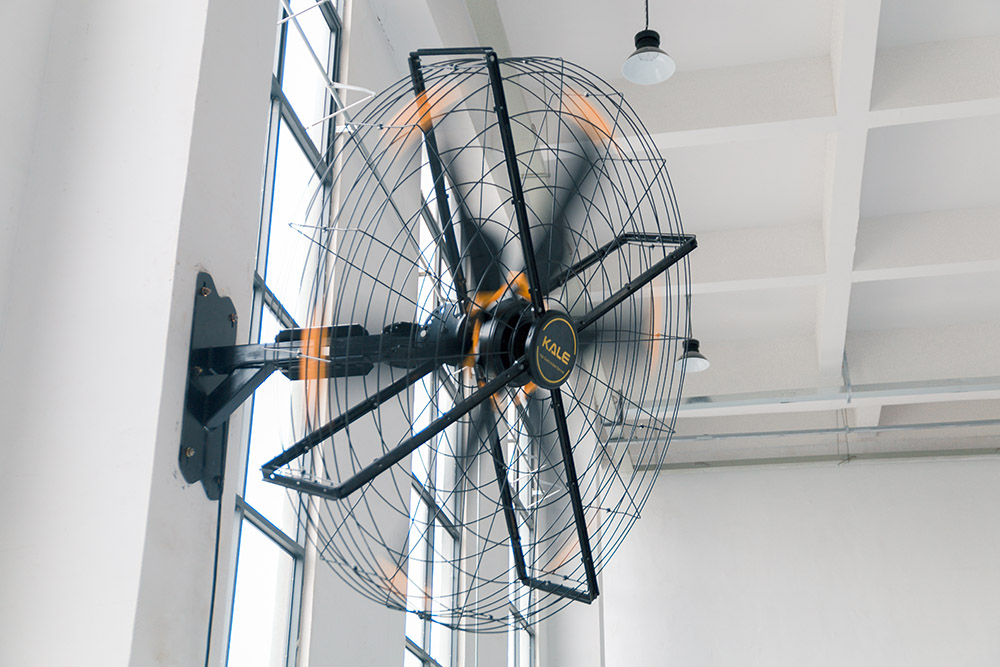

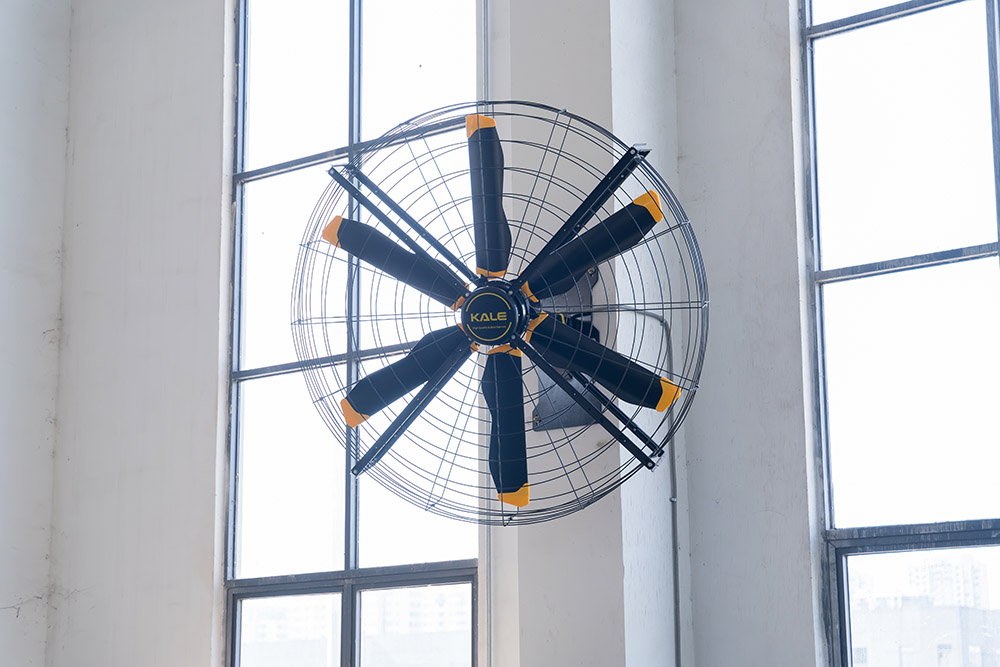

AlRFREE is an energy-saving wall-mounted fan with a diameter of 2 meters and a wind delivery distance of more than 40 meters, which can even cover entire basketball court. It uses a high-efficiency PMSM motor and is suitable for various environments such as industry, commerce. and animal husbandry, perfectly solving the problem of warehouse air circulation or keeping livestock cool.
Key Features:

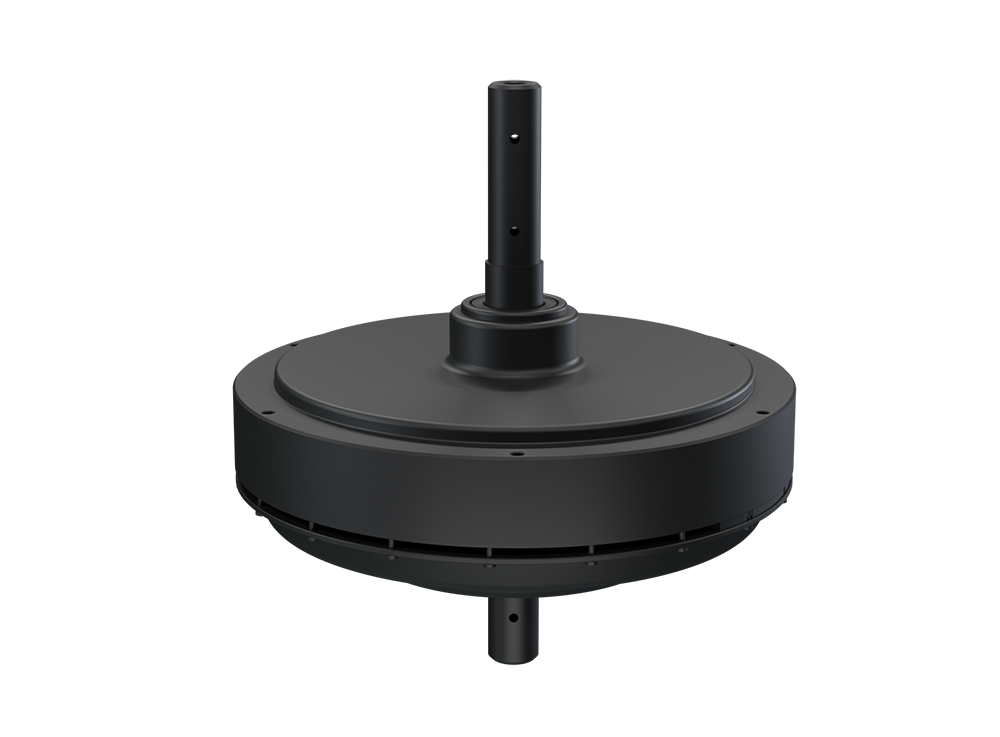

AIRFREE wall mounted fan's' external rotor motor provides high torque for a long covering distance. The fully enclosed PMSM motor perfectly solves the problem of motor gear friction, reducing the noise level to below 43 dB(A) and making it very quiet. No gearbox, no exposed transmission parts, PMSM motor technology eliminates the need for regular maintenance, such as lubrication and gear adjustments, making the fans more reliable and cost-effective in the long run.
Made of high-strength aerospace magnesium-aluminum alloy (6063-T6). The surface of the fan blade adopts electro-static spraying process, which is corrosion-resistant. Airfree fan's unique blade design, with its solid curved end,greatly improves air generation performance. The winglet guarantees safe and stable operation by reducing blade vibration.
| Model | SHVLS-G6BAA20 |
|---|---|
| Size | 1980x1881x374mm |
| Air volume | 1208m³/min |
| Max speed | 320RPM |
| Fan weight | 136kg |
| Power | 0.55kW |
| Full load current | 2.7Amps/220V |
| Noise level | <43.0dB(A) |
| Protection level | IP55 |

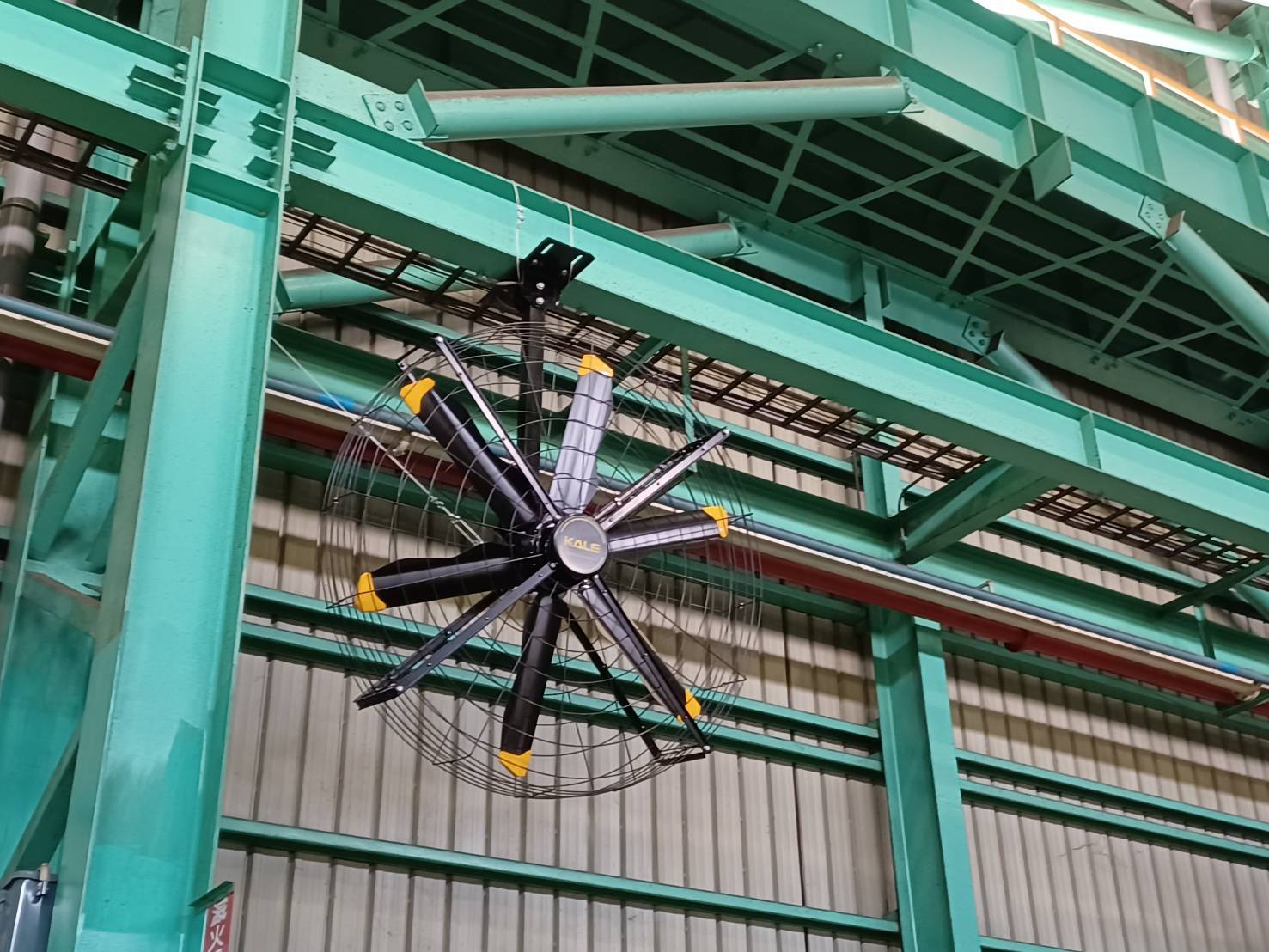

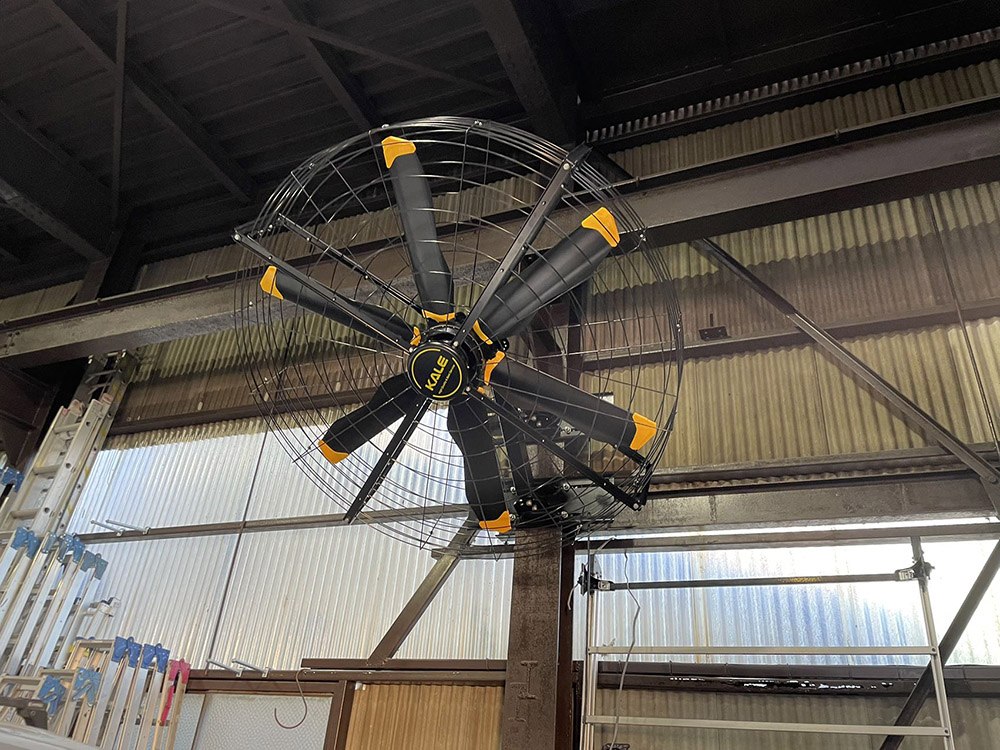

AIRFREE wall-mounted fan delivers directional airflow and comfort in diverse applications, such as commercial spaces and industry. It is the perfect cooling solution for a wide range of environments.
