Aircool is designed to provide high-volume, low-speed airflow, making them ideal for a wide range of applications, from residential to commercial spaces.
AIRCOOL commercial ceiling fan represents a significant advancement in air circulation technology, offering a blend of efficiency, comfort, and aesthetic appeal. Aircool fan is designed to provide high-volume, low-speed airflow, making them ideal for a wide range of applications, from commercial to outdoor spaces.
Key Features:

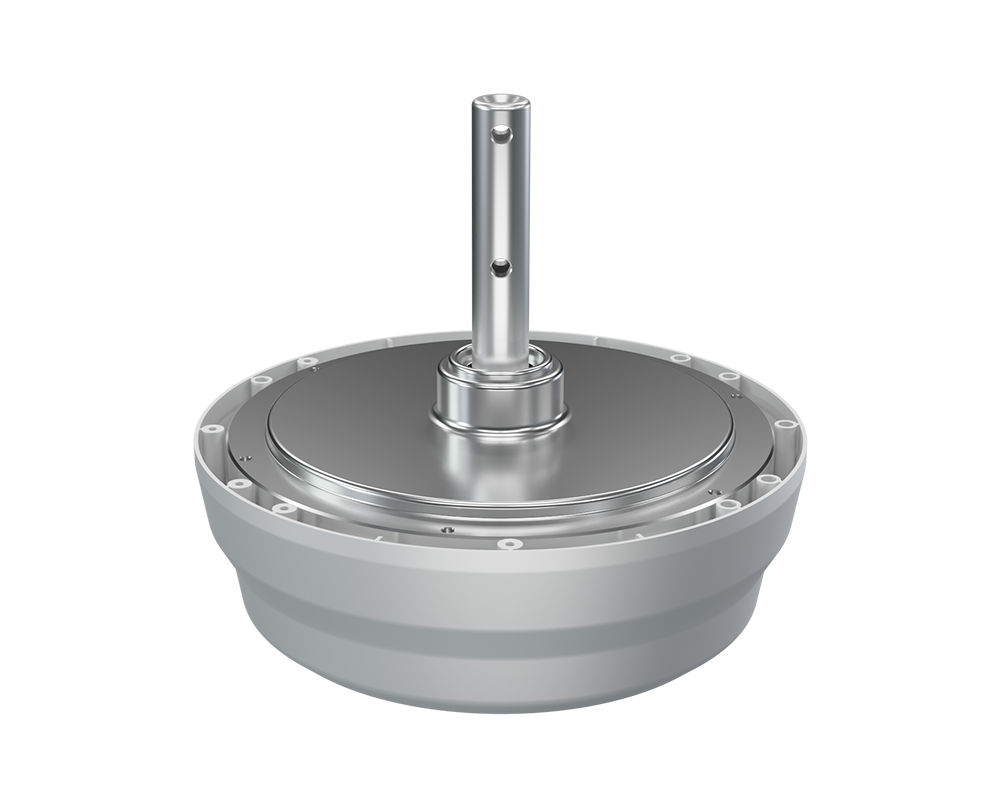

The fully enclosed, gear less PMSM motor operates with minimal noise (<40dB(A)) and vibration due to its low RPM design. With an IP65 rating for complete protection against dust and water, it delivers reliable, maintenance-free performance 24/7, even in extreme conditions, ensuring long-term cost-effectiveness.

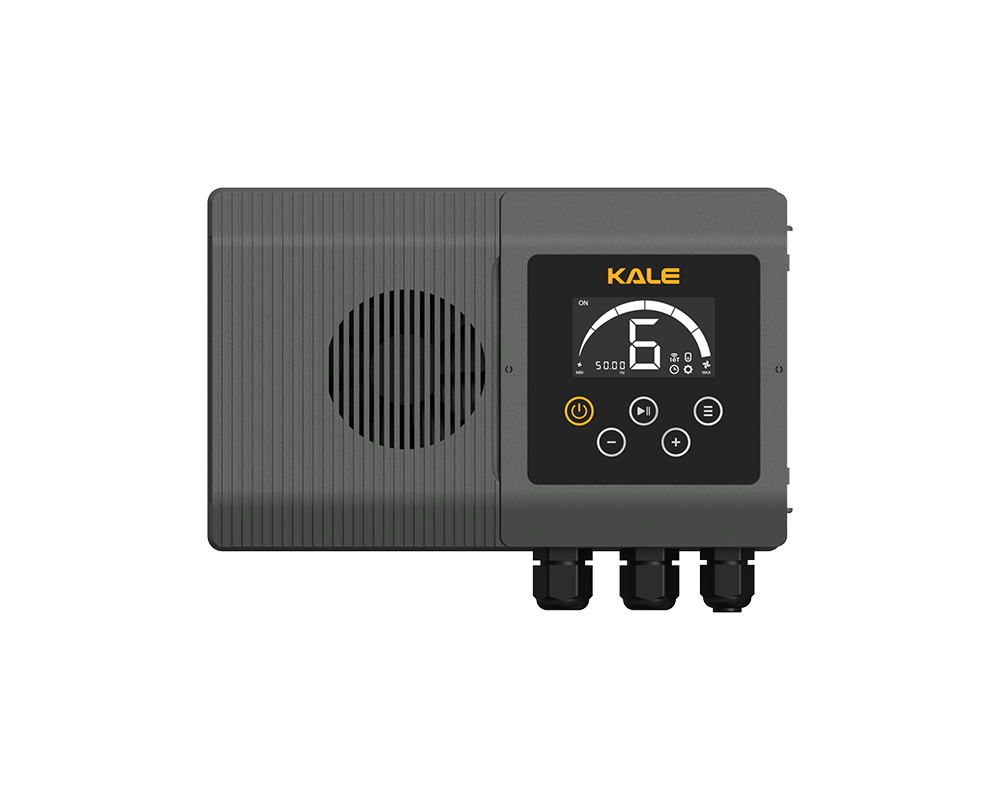

Local Centralized Control Solution
Remote control and monitoring of multiple devices.
RUN/STOP status and operation speed adjustment of fans can be controlled with a timing function (daily/weekly), countdown and temperature control.
Constraint is up to 30 units.
The distance between the master controller and the sub-controller should be < 2km.
Optional plan with the new fan’s controller – KALE FANS Cloud Available for iPad, PC and Phone to access the control system.
Aircool fan blade adopts the wavy streamline shape design, which creates a smooth, lively, and tense visual effect with a modern feel. The fan can use a variety of color combinations to meet the needs of different customer environments.
| Model | Size | Air volume | Max speed | Fan weight | Power | Full load current | Noise level |
|---|---|---|---|---|---|---|---|
| SHVLS-D5BAA42 | 14ft(4.2m) | 7550m³/min | 72RPM | 52kg | 0.35kW | 1.5Amps/220V | <40dB(A) |
| SHVLS-D5BAA36 | 12ft(3.6m) | 6560m³/min | 95RPM | 48kg | 0.33kW | 1.3Amps/220V | <40dB(A) |
| SHVLS-D5BAA30 | 10ft(3.0m) | 5250m³/min | 110RPM | 44kg | 0.30kW | 1.1Amps/220V | <40dB(A) |
| SHVLS-D5BAA25 | 8ft(2.5m) | 4550m³/min | 130RPM | 41kg | 0.26kW | 0.8Amps/220V | <40dB(A) |
| SHVLS-D5BAA20 | 6.5ft(2.0m) | 3900m³/min | 150RPM | 38kg | 0.14kW | 0.4Amps/220V | <40dB(A) |

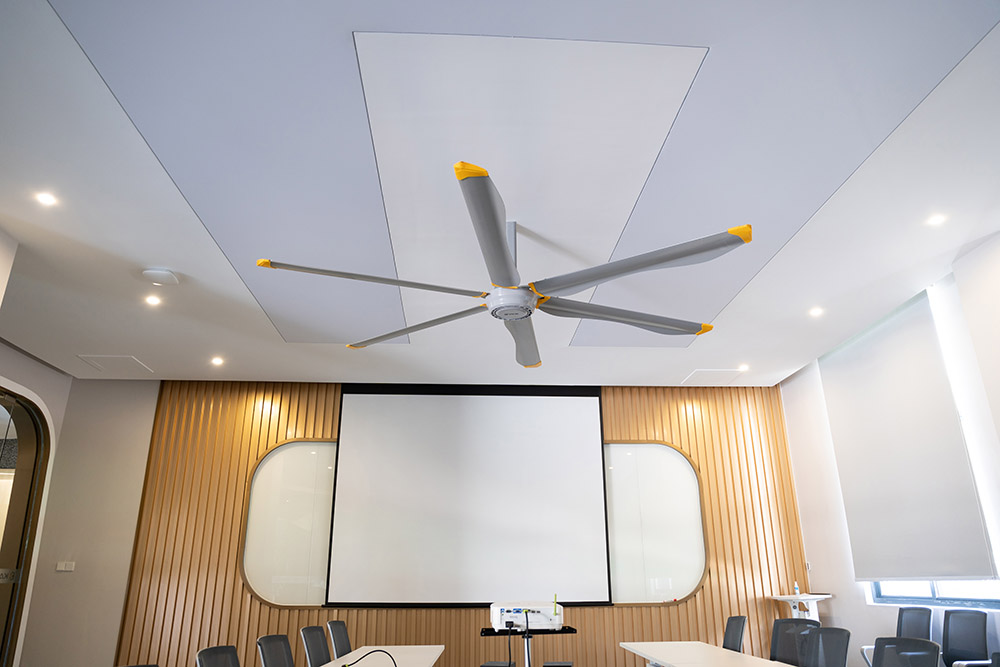

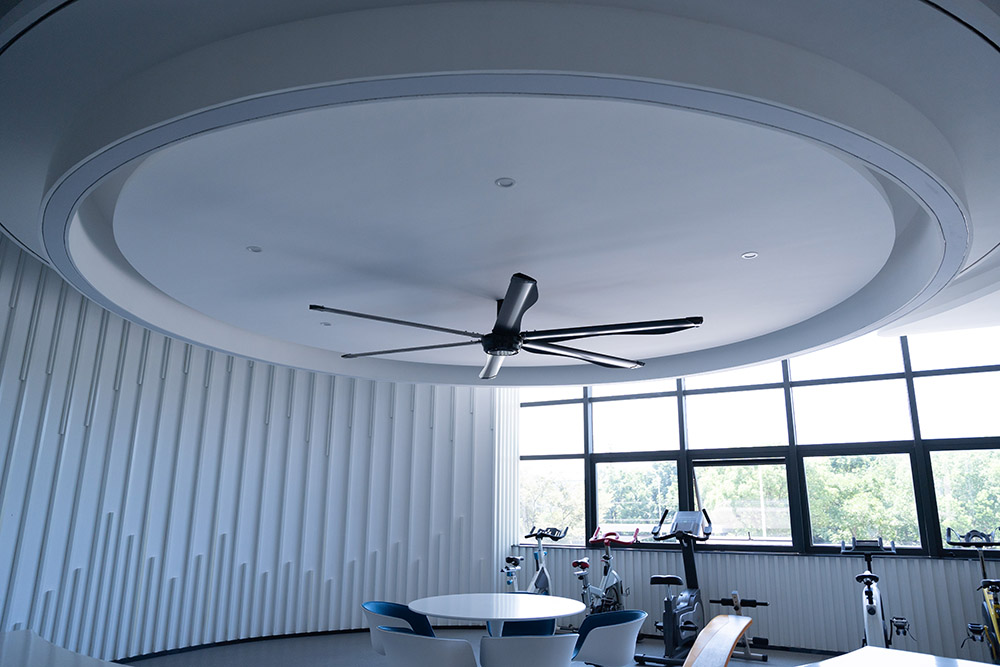

Aircool commercial ceiling fans are designed for small to medium-sized commercial spaces, ideal to ensure comfort and productivity, which is a top choice for building spaces like gyms, hotels and offices.
